What Is Urethane Casting
Urethane casting is the process of injecting polyurethane and additive resins into a soft mold made of a silicone elastomer. The casting process is similar to injection molding but does not use hard, tooled metal molds. It is used for short-runs and low to medium volume production, which is due to the rate at which the silicone molds wear, Urethane casting is a less expensive process faster, due to the elimination of metal molds, but retains the quality of the molded products.
Advantages of Urethane Casting
Cost-Effectiveness: Urethane casting is an economical alternative to traditional manufacturing methods such as injection molding, particularly for low to medium production runs. It involves less expensive tooling and setup costs, making it ideal for small-batch production and prototyping while producing parts that possess similar qualities to injection-molded parts.
Rapid Prototyping: Urethane casting enables designers and engineers to test and refine their designs before committing to more expensive production methods, saving time and resources.
Material Versatility: There are many available cast urethane materials, each with unique properties. The casting process can replicate various material properties, from rigid to flexible, transparent to opaque, making it ideal for various applications. Unlike injection molding, which requires high temperatures and pressures, you can cast urethane resins at room temperature. This feature provides flexibility in creating parts with specific material qualities.
Complex Geometries: Urethane casting excels at reproducing complex and intricate geometries. It can replicate fine details and undercuts in molds that are challenging for other manufacturing processes.
Quick Turnaround: The process is relatively fast, with short mold creation and part production lead times. This speed is advantageous for meeting tight project timelines and getting products to market faster. Cast parts, especially larger ones, can be made faster than 3D-printed ones.
Low-Volume Production: Urethane casting is well-suited for low to medium-volume production runs. It allows for the economical production of a limited number of parts without needing expensive tooling adjustments.
EXPERTS SUPPORT
Can't decide the printing technology and most suitable material for your project? Don't worry about it. We'll help you make your best 3D Printing project yet.
FULL-SERVICE 3D PRINTING
From your sketch, we will design, 3D print, clean and polish your 3D printed object. Need a metal finish or regular paint? We can do that too!
INDUSTRIAL 3D PRINTERS
You will get access to high resolution industrial 3D Printing technologies without the cost that comes with it.
SUPERIOR QUALITY PRODUCTION
Get a smooth surface finish for your 3d printed parts or artwork.
QUICK TURNAROUND
Never stress about your project's deadline, we will get your 3D print parts in no time!
How Does Urethane Casting Work
There are four components to creating urethane cast: which are the polyol compound, the diisocyanate compound, the chain extender or curatives, and the additives. Mechanical properties depend on the formulation of the prepolymer resin (the mixture of polyol and diisocyanate compounds) and the curatives. Additives are added to further improve the properties of the polyurethane such as resin curing time, machinability, color, and UV protection. Additives are carefully proportioned relative to the resin mixture since they can weaken the urethane cast.
One of the concerns for urethane molding is the coefficient of friction (COF), which is an indication of when plastic materials stick to each other. To lower the COF, organic compounds called "slip additivies" designed to cover the surfaces of plastic forms and reduce the friction between them, are added to the urethane casting. The most popular types of slip additives are acid amides, erucamide, and oleamide. Erucamide is a slow moving additive while oleamide is fast-moving.
The polyurethane reaction involves the formation of a simple polymer chain from the reaction of a polyol component (a carbon-chained molecule with alcohol on both ends) to a diisocyanate component (a molecule with isocyanate on both ends). This results in a molecule with a reactive alcohol on one end and a reactive isocyanate on the other. The alcohol end further links to another isocyanate end or terminal, while the isocyanate end of the same chain further reacts with chain extender compounds (curatives such as hydroxyl and amines). This process continues on by making long-chained polyurethane.
Preparing the formulation can be done through different processes: single shot, prepolymer, and quasi-prepolymer process. The single shot process involves having all components in separate chambers. These will then be blended by a mixing head and poured or injected into the mold. The prepolymer process, on the other hand, mixes the polyols and diisocyanates prior to pouring them into the mold. This process helps dissipate the heat produced from the exothermic reaction of the compounds. Last will be the quasi-prepolymer. Quasi-prepolymers consist of polyols partially reacted with the diisocyanate compounds. This simplifies the formulation process since the quasi-prepolymers are less viscous and require low processing temperature.
The Urethane Casting Process
Urethane casting is an easy, straightforward process. It only involves making the pattern, making the mold, and pouring the resin. Below are the steps in making urethane cast products.
Developing the Master Pattern
The most common process in creating a master pattern is by 3D printing, either by SLA (stereolithography), by PolyJet, or by FDM (fused deposition modelling). Other methods such as CNC machining may be used. Both methods start by making a CAD model of the part to be cast. In making the 3D model, it is important to keep in mind how the pattern will be molded and how the urethane cast will be removed. It is worth considering the following suggestions.
Remove problematic features such as deep and narrow holes, internal cavities, and channels. These features can be added by secondary processes after the urethane part has been cast.
Unlike die casting and injection molding, urethane casting does not require draft angles. Silicone molds are flexible and can be deformed to remove the molded product.
Add gates and vents to the CAD model. The gates are where the resin and curatives will be injected; while the vents allow the escape of air trapped inside the mold. The size and location of the gates depend on the volume and profile of the pattern.
Section the model or separate its parts as needed. This depends on how much is the build volume of the 3D printer.
Add locators on the mold to prevent any shifting of the mold halves. If there is shifting, the parting line of the molds will become significantly visible, and the dimensions of the product will be off tolerances.
Choosing and Mixing the Silicone
Silicone formulations usually come in as a viscous fluid of siloxane polymer which is then combined with a cross-linker and a catalyst. Creating a semi-solid from this siloxane fluid is usually done by two-component room temperature vulcanizing (RTV-2). This method is divided into two types: condensation cure and addition cure.
Condensation Curing in Urethane Casting
Condensation curing uses organo-tin compounds as the catalyst. Polymerization is done by mixing the reactive component, the silane crosslinker and catalyst, and the unreactive component, the polymer and filler. This is the inferior method between the two since this curing process produces shrinkages of about 0.5% as the curing agent leaches out of the mold over time. Nevertheless, one advantage can be mentioned which is its resistance to inhibition. Inhibition happens when contaminants on the surface of the pattern prevents the silicone from properly curing. A common contaminant is sulfur, which is usually found in modeling clays. If modeling clay is used for the master pattern, then condensation curing may be the better option.
Addition Curing in Urethane Casting
Addition curing is done by mixing the siloxane polymer and the platinum complex catalyst. This type of curing produces no by-products which in turn makes the mold odorless, gives it a longer shelf life, and keeps it shrinkage-free. They have better mechanical properties than condensation cured silicones but are critically sensitive to sulfur, phosphorus, arsenic, organo-tin compounds, PVC stabilizers, epoxy resin stabilizers, and natural rubbers.
Apart from two-component room temperature vulcanizing, there are other methods of polymerizing silicone such as one-component room temperature vulcanizing (RTV-1) and high temperature vulcanizing (HTV). With RTV-1, polymerization happens when the mixture of silicone fluid and cross-linkers is exposed to atmospheric humidity by undergoing hydrolysis. This process releases alcohols, acetic acid, ketones, and so forth. The release of these compounds produces the characteristic smell of the product. With HTV, on the other hand, high-temperatures break down the peroxides into free radicals, which cross-links the polymer. This process is also known as peroxide curing. The downside of HTV is the shrinkage of the silicone mold after cooling due to the high coefficient of thermal expansion of silicone.
The elastomer components are then mixed in a container. This should be larger than the silicone volume to allow for expansion during degassing. Degassing is not required but is recommended to eliminate air bubbles caused by mixing. Bubbles trapped between the silicone and the surface of the pattern will cause bumps in the urethane cast. During degassing, the silicone mixture will rise until the air dispersed into the silicone is released. Afterward, the volume will return to its starting level.
Creating the Silicone Mold
The next step is to prepare the silicone mold. A mold box or a frame is prepared to contain the silicone while being poured. This is similar to a flask used in metal casting.
The master pattern is placed in the mold box, where the silicone and catalyst mixture is then poured. This process can be book mold, two-part mold, or skin mold. The book mold, or single stage mold, involves suspending the master pattern inside the mold box. The silicone is then poured into the mold box until it fully covers the pattern. Once cured, the silicone block is then cut in half to remove the pattern.
The two-part mold, on the other hand, has a predefined parting line on the master pattern. In this process, the mold box is filled with silicone only up to the parting line. After curing, the pattern is removed, and a second mold is prepared from the remainder.
Skin mold involves applying the silicone mixture by pouring it on the pattern layer by layer until a desired thickness is achieved.
After curing the silicone mold, it is optional to apply a release agent before introducing the urethane. The release agent helps in the removal of the cast from the mold. Since silicone is flexible and does not readily bond with urethane, a release agent is not required.
Open Silicone Molds
Open silicone molds are the most basic form of molds and are widely used by DIY hobbyists. The creation of an open silicone mold follows many of the steps associated with producing silicone molds, with two halves of an open silicone mold being much easier to create and involving less precision.
The process of making an open silicone mold begins with a pattern that has been created by 3D printing or CNC machining. It is essential that the pattern be inspected for any errors such as cracks, chips, or uneven surfaces since they will appear in the molded shape. Sanding and painting the pattern multiple times can guarantee a proper surface finish. After the pattern is definitively clear of all errors, it is sprayed with a release agent and placed, face up, in the bottom of a tightly sealed wooden box with a sufficient amount of clearance on all sides to ensure proper coverage of the pattern.
The selection of the type of silicone is dependent on the use for which the mold is being made. The choice of silicone is related to its hardness, which can be hard and inflexible or soft and pliable. Additionally, the complexity of the pattern influences the choice of silicone. The mixing of the silicone can be based on weight or volume, another factor related to the use of the final product.
With the open silicone mold process, the silicone is poured over the pattern, a process that requires excellent control. Prior to pouring the silicone, the depth or height at which it will be poured has to be predetermined. The silicone is poured from the lowest point of the mold and allowed to fill up any crevices, intricate patterns, and openings.
A common error associated with open silicone molds is bubbles that are created during the pouring process. To avoid the pimples and deformities of bubbles, the silicone solution is placed in a vacuum degasser under pressure. This will pop any bubbles and create a smooth, even solution.
Once the silicone has filled the box and covered the pattern, it must be allowed to cure. Curing agents can be tin or platinum, with platinum being the more expensive. The amount of time for curing varies depending on the complexity of the pattern and the density of the silicon. Under normal conditions, curing takes six hours or more.
At the end of the curing process, the mold can be removed from the box by ripping the box apart, which has to be done gently to avoid damaging the mold. As with any molding process, there may be bits of the silicone material, called flashing, that have seeped into the mold that has to be removed. Unlike injection molding, the fragments can easily be cut away.
Finalizing the Urethane Cast
There are a variety of polyurethane resins available for casting, each with its own set of properties. Choosing the right urethane resins and curatives will be discussed in detail later. Once the silicone mold is prepared and the urethane resin has been chosen, casting is ready to begin.
The casting process involves two liquids, the resin, and the curative, chemically reacting to form the shape of the pattern. Like the silicone, the resin and curative are mixed in a container and degassed to remove any trapped bubbles dispersed in the mixture. The mixture is then introduced into the mold by pouring or by pressure fill. Pouring uses gravity only to fill the void inside the mold, while pressure fill requires the use of equipment such as an injection ram or screw-type plunger to push the mixture.
Once the urethane is cured, the silicone mold is split into its two halves and the cast is removed.
Secondary Operations After Casting
Depending on the quality of the silicone mold, the urethane cast can have a smooth surface with minimal rough areas. Gates, vents, and flashings are cut and smoothened. Holes and channels not included in the master pattern are drilled or milled to complete the features of the product. One thing to remember while urethane cast machining is its susceptibility to melting. Machining must not be too aggressive, and the use of coolants is recommended.
Urethane Casting Materials
As mentioned before, urethane resins are made of four components. Out of these four components, three influence the final mechanical properties of the product. There are a number of formulations possible that serve a specific application. Below are the urethane resin components, their types, and the properties they impart to the product.
The Polyol
A polyol is an organic molecule containing one or more hydroxyl (OH) groups. Polyols used in urethane casting are either polyether or polyester types.
Polyether
These are made by the reaction of organic oxides and glycol. Polyethers are characterized by having good resilience, high impact resistance, low heat build-up for dynamic applications, hydrolysis resistance, and good low-temperature performance. Common types of polyether used in the polyurethane industry are PTMEG and PPG. Between the two, PTMEG offers superior quality but is more expensive.
Polyester
These are made by the polycondensation reaction of diacids and glycol. Compared to polyethers, polyesters have good abrasion resistance, heat aging resistance, oil resistance, solvent resistance, good shock absorption properties, and better tear resistance.
Specialty polyols
The most common are polycarbonate and polycaprolactone polyols. These two polyols are also sometimes classified as polyesters. Polycarbonates are used as engineering materials due to their strength and toughness. Polycaprolactone, on the other hand, gives the cast urethane good water, oil, solvent, and chlorine resistance.
The Diisocyanate
Like the polyols, diisocyanate compounds form the resin side of the polyurethane system. There are two main types of diisocyanate: aliphatic and aromatic.
Aliphatic Diisocyanates
This type‘s most popular characteristic is its non-yellowing appearance. Also, they have lower reactivity that makes them useful for chemically-resistant coatings. Aliphatic diisocyanates are mostly used in polyurethane coatings, films, and castings where color stability is required. The most common ADIs are hexamethylene (HDI), hexamethylene (HMDI), and isophorone (IPDI).
Aromatic Diisocyanates
This type is further divided into NDI, TDI and MDI.
Naphthalenic Diisocyanates (NDI)
This type is extensively used in Europe as compared to the TDI and MDI-dominated American market. NDIs are known to offer superior performance and long service life for dynamic applications. One downside of using NDIs is their high melting point making them difficult to process. Moreover, it is highly reactive resulting in lower storage stability. Thus, it is usually manufactured with special equipment at the custom molder.
Toluene Diisocyanate (TDI)
This type is popularly used for high hardness applications such as guide rollers, in contrast with MDIs. Typical forms of TDIs used in an industrial scale are the 2,4 and 2,6 isomers at an 80/20 blend. Producing different proportions other than the 80/20 require an additional process.
Methylene Diphenyl Diisocyanate (MDI)
MDIs are known for imparting high resilience and impact strength to urethane casts. That is why MDIs, paired with either polyethers or polyesters, are used in dynamic, high impingement applications such as wheels, construction panels, automotive bumpers, and the like. The most common isomer used in casting is purified 4,4 isomers.
Curatives
Curatives are mixed with the polyol and diisocyanate prepolymer to form a solid or semi-solid elastomer. There are two basic types of curatives: hydroxyls and amines.
Hydroxyls (Diols)
These curatives have hydroxyl groups (OH) at the molecule terminals that link prepolymers. The standard hydroxyl curative is 1,4-butanediol (BDO), commonly used in MDI prepolymer systems at room temperature.
Amines
Aside from hydroxyl groups, amine groups (NH2) can also bond on the terminals of the prepolymer. The widely used amine curative is 4,4-methylenebis (2-chloroaniline) or MOCA as the base curative for TDI prepolymer systems. However, this type was then identified as a carcinogen by OSHA. Other amine chain extenders are now being used such as 4,4-methylenebis (3-chelloro-2,6-diethylaniline) (MCDEA).
Applications of Urethane Casting
Because of its wide array of properties, cast urethanes are found in every industry. Urethanes are versatile materials that can be manufactured easily with low initial costs. Below are popular applications of urethane casting
Product Design
As mentioned earlier, prototyping or product design is one of the main applications of urethane casting. Urethane castings can conform to any design due to its easy to customize properties.
Wheels and Rollers
Due to their toughness, high impingement resistance, shock absorption, and fatigue resistance, urethane resins are a popular choice. Urethane castings can be seen on caster wheels, pulleys, guide rollers, and so forth.

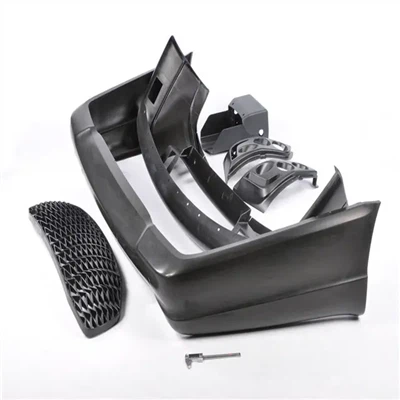

Automotive Vehicles
Urethane castings can be formulated as shock and vibration resistant which makes them suitable for automotive applications. Moreover, they can withstand high temperatures, replacing steel.
Medical Device Components
There are urethane formulations available that are FDA compliant. Medical devices serving a niche purpose or having a unique design usually requires low volume production. This makes urethane casting a suitable method of production.
Shock Absorbers
High vibration from rotating equipment causes rigid materials to crack. Urethane castings can be made to absorb vibrations, as seen from shock absorbers and dampers.
Consumer Products
Because of its wide range of properties, urethane castings can be used in many consumer products. Examples of these are shoe soles, sports equipment, electronics casings, and so forth.
Guide to Urethane Casting
Designing for urethane casting
Designing for urethane casting is slightly more forgiving than designing for injection molding, as there is less risk of part shrinkage and less risk of sink marks developing due to the lack of a heating-cooling cycle in cast material. However, wall thickness, draft angle, and construction of ribs and bosses can all affect the result. It can also be helpful to incorporate design changes for injection molding if large-volume production will be the eventual end goal.
Wall thickness
The typical minimum wall thickness for cast urethane parts is 0.040″. However, wall thicknesses as thin as 0.020″ can be possible on smaller parts. Larger parts should use thicker walls to ensure the part is strong enough. While urethane casting can accommodate variations in wall thickness better than injection molding, a uniform wall thickness can help reduce the risk of any deformation.
Draft
While incorporating a draft angle is not strictly necessary in urethane casting, a 3-5 degree draft can help the part release from the mold much easier, extending the life of the mold. As a draft angle is necessary for an injection molded part, it often makes sense to include one if you intend to replace it with an injection molded equivalent eventually.
Ribs
Ribs can help reinforce parts without significantly adding to their thickness. Rib height should be no more than three times the thickness of the rib, with rib spacing at least twice the thickness of the rib away from each other. A fillet radius of at least one-quarter of the rib thickness can help reinforce the ribs. Make sure to position the ribs so that they increase the part’s bending stiffness.
Bosses
Bosses are often used to secure mating parts such as pins or screws. The base diameter of the boss should be at least half the thickness of the part. The wall thickness of the boss should be less than 60% of the thickness of the part to minimize shrinkage. A fillet on the inner radius of bosses of 0.060″ can help reduce the risk of sinking.
Fillets
A fillet is a rounded corner that is used to smooth out sharp edges. It not only improves appearance but also can reduce stress. Interior fillets of 0.125″ should be added to all inside corners to increase the part's strength.
Inserts and through holes
During the mold-making process, metal dowels are placed into the holes of the master part to transfer through holes into the fabricated parts. Threaded inserts are also added to a urethane casting mold if the part will be fastened using screws.
Blind holes and overhangs
While it may be possible to design and print a 3D printed part that contains overhangs and blind holes, often, these features do not translate well to the urethane casting process. Make sure that the part you design will be manufacturable.
Material selection
Most common urethane resins resemble ABS; however, various resins have different material properties. Resins are available that are flexible, rigid, heat resistant, or UV resistant. Whatever material requirements you need, there is likely a cast urethane resin that meets your needs.
Selecting urethane materials
Choosing a suitable urethane material for your application can make or break your part. The choice of material depends on your final parts'desired properties and characteristics. Collaboration with urethane casting experts or material suppliers is invaluable during material selection. They can provide guidance and recommendations based on your project's specific needs. Conducting material tests and prototyping can also help verify that the selected material meets your requirements before proceeding with full-scale production. Here are the key factors to consider when choosing a urethane material:
Material properties
Determine the specific material properties you require for your parts, such as hardness, flexibility, transparency, chemical resistance, and temperature resistance. Different urethane formulations offer varying combinations of these properties. Consider the intended use and environment of your parts when making this decision.
Durometer (hardness)
Durometer is a measure of a material's hardness, typically expressed as a number on the Shore scale, with higher numbers indicating greater hardness. Select a durometer that aligns with your project's requirements. For example, if you need a flexible part, you may choose a lower durometer, while a more rigid part may require a higher durometer.
Color
Urethane materials come in a range of colors. If the color of your parts is important for branding or visual aesthetics, choose a material that matches your specifications.
Clarity
Some applications may require transparent or translucent parts. Urethane materials can vary in clarity, so select a material that meets your requirements for optical properties.
Abrasion resistance
Consider the potential for wear and tear on your parts. If using your parts in abrasive conditions, choose a urethane material with high abrasion resistance to ensure longevity.
Chemical compatibility
Select a material that can withstand exposure to substances it may come into contact with during use.
Temperature range
Urethane materials have varying temperature resistance capabilities. Ensure that the chosen material can withstand the expected temperature extremes.
UV stability
Urethane materials with UV stability prevent degradation and discoloration for parts exposed to sunlight or UV radiation.
Food-grade or medical compliance
If your project involves applications in the food or medical industries, choose urethane materials that are food-grade or medical-compliant and meet the regulatory requirements.
UV stability
Choose a urethane material compatible with the mold material used in the casting process. Some materials may adhere to certain mold materials more effectively than others.
5 Reasons to Choose Urethane Casting
If you've never heard of urethane casting, you're not alone. But this manufacturing method that creates high-quality rigid, flexible, or rubber-like parts is rising in popularity and may become your next top manufacturing choice
Cosmetic finish
If your parts are consumer-facing - or you just want a high-quality cosmetic finish - urethane casting delivers the best appearance, quality, and surface finish of many other processes.
Colored or clear
Urethane excels at coloring consistently and can match more specific color options than other processes. Parts can be also be made clear, which is very hard to hit via machining or 3D printing.
Large size variation
Urethane parts can be scaled for a multitude of sizes without compromising any details or customization. They can also be scaled in volume production, for when you want one part or a hundred.
Flexible material
Urethane casting allows for much more flexibility than other processes, such as Polyjet 3D, before tearing. Urethane rubbers are extremely durable, and can tuned to your specific durometer.
Endless capabilities
You can customize urethane parts with inserts, over-molds, and other hardware. When you need a small batch of production-quality parts with tough requirements, urethane will almost always be your best bet.
Best Practices When Using Urethane Casting Resin
Personal Protective Equipment: Always use a respirator or a self-contained breathing apparatus when working with urethanes! Additionally, wear nitrile gloves, safety goggles or glasses, and long-sleeved shirt and long pants.
Mixing Tips: Once each side is measured and weighed in separate clean plastic containers, pour both A and B into a third clean plastic container for mixing. Pour immediately after mixing!
Never mix less than about 3 ounces of product: When manufacturers design and test their urethanes, they normally write the specifications for 100 gram batches, which is about 3 ounces.
There are two bad things that can happen when mixing a smaller batch. 1) Because the sample is small, it is much more difficult to get the mix ratio correct. 2) These mixtures are exothermic, meaning that they generate heat in order to cure. A tiny batch does not generate enough heat to cure the resin properly.
Avoid mixing with drill motors: Mixing with an electric drill can cause a few problems. They don't get into every corner of the mixing container. Also, if they spin too fast, they can generate friction in the resin causing it to exotherm out of control resulting in premature curing. Powered mixing also can generate a lot of air bubbles.
Mold Release: If you use a mold release, let it dry for a while. A spray can of mold release contains a lot of solvents and propellants. These compounds need to evaporate off the surface so they don't cause bubbles. Check the dry time of the mold release from the directions on the label.
Do not vary the mix ratio: Unlike some polyester resins, altering the mix ratio to vary the cure cycle does not work with urethanes.
Coloring our white casting resin: Add our urethane colorant by drop until you get the color desired. NOTE: You will not get black or red with our white casting resin. For black, use our jet black casting resin.
Removing surface oil before painting white casting resin: De-mold the fully cured casting. Put the casting into talc for 24 to 36 hours. Remove it from the talc, wipe off talc and wash casting with mild dish soap like Ivory liquid soap and water. Dry the casting thoroughly. Use a high quality priming paint like Krylon Fusion or a clear automotive priming paint before your first color coat.
AeroMarine Products'fillers with casting resin: AeroMarine Products'white microspheres will make casting resin float, while our bronze powder will make it heavier.
Mix everything twice: Mix the two components together very thoroughly in a clean plastic container, then transfer the mixture to another clean plastic container and mix them again. The theory is that the liquids clinging to the sides and bottom of the containers don't get mixed well. By transferring the mixture to another clean plastic container, you are assured that everything is well mixed. Any unmixed material stays in the first container.
PLEASE NOTE: When using fast, water-thin casting resins, you may only have time to mix it once. Since it is water thin, it will probably mix fine in one mix.
Mix in plastic containers: Always mix your urethanes in a clean plastic container, using plastic or metal mixing tools. Paper cups and wood contain moisture which may adversely affect the polyurethane. Avoid waxed paper cups because the wax may melt and contaminate the resin.
How to avoid air bubbles: Air bubbles in urethanes are almost always caused by moisture. Do everything possible to avoid moisture getting into the mix. This includes replacing the lids onto the containers promptly after use as well as avoiding using the product during rainy days or times of high humidity. Do not pour against an unsealed water based product such as plaster or hydrocal. Seal plaster or hydrocal with something like Krylon Clear Acrylic. You can also use an aerosol nitrogen blanket that may increase the shelf life of the urethane during storage.
Do not mix a large batch: The larger the batch, the more exotherm or heat is generated in the cure cycle. If you are casting a large part, mix small batches to make the process more manageable. Thickness of the pour also affects the exotherm and cure speed. A very thin pour will take much longer to cure than a thick pour.
Shake or stir very well before use: The liquid components may settle in the containers during storage. Vigorously shake or stir the components separately before mixing. Let it sit a few minutes to let any bubbles rise to the surface after shaking the container.
Test: Always run a test determine the feasibility of your process. There are many unforeseen factors that can affect the outcome of your project. Running a controlled test may be inconvenient, but it can make the “Learning Curve” of processing these products much easier.
