CNC Machined Carbon Fiber Plate

Our CNC-machined carbon fibre panels address real world problems, ranging from automobile light weight components (for example, racing chassis components) to satellite structures and high precision sports equipment:

Customization: We deal with low volume prototypes as well as large orders, and we tailor your design files (STEP, IGES, etc.) with quick turnaround.

Cost Efficiency: Our optimized manufacturing process reduces material wastage and rework – saving time and budget for customers.

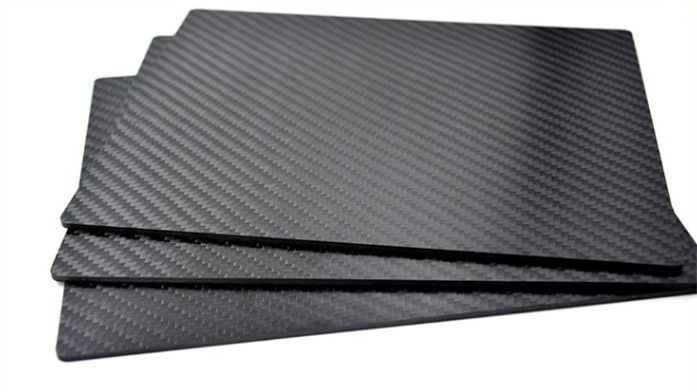

As you can see, our finished parts show clean processing and dimensional precision to meet the requirements of our customers.

When processed with CNC precision, carbon fibre sheets offer exceptional performance in high-risk sectors (aeronautics, automobile, defence). Below are the core technical advantages and their real-world impact:

1.CNC machining uses diamond coated tooling and low vibration strategies to minimize the delamination and fraying of fibers in the cutting process, allowing for ultra-precise machining (± 0.05 mm tolerances) and complicated geometry (such as holes and profiles) that can support narrow tolerance applications (e.g., satellite structure panels, car sensor mounts).

2.By controlling the direction of laying of the fiber (for example, one-way, two-way) and the thickness of the treatment, the component achieves a weight reduction of up to 50% compared to aluminium (essential for EV chassis, racing parts). It is also possible to tailor the stiffness (for example, high bending stiffness of the frame, impact resistance of sports equipment).

3. Carbon fiber's inherent corrosion resistance (salt water, chemicals) and wear resistance allows it to maintain performance in extreme conditions (e.g., marine applications, high temperature aerospace environments).Low maintenance requirements reduce the life cycle costs of long term projects (such as infrastructure, industrial machinery).

1.CNC machined carbon fiber plate provide higher product durability means 40% lower after-sales maintenance costs (vs. metal alternatives) and fewer customer returns-protecting your brand reputation.

2.Precision cooling and deburring ensure a smooth surface finish (Ra ≤ 0.8 μm, as seen in our product images) and a first pass rate of ≥ 99.5%. Fewer defects mean fewer rework, less customer returns.

3.CNC technology supports: Complex 3D shapes (for example, eight-sided shapes in our product image) and internal channels.

Rapid iteration from prototyping (1 - off) to mass production (10,000 + units) which can shorten the research and development cycle by 30%, avoiding "design deviations caused by changing suppliers" and accelerating the product launch.Compatibility with CAD files (STEP, IGES) for smooth integration into production processes.

4.Components balance lightweighting (50% lighter than aluminum) with impact resistance,transportation costs reduced by 30%, equipment energy consumption decreased by 15% (such as in the application of EV battery compartments).

CNC processing transforms carbon fibre sheets from high performance materials into solutions for industry specific challenges. In the following section, we discuss how CNC-machined carbon fibres provide value in key sectors, combining technical depth with commercial impact:

1. Automobile: The EV needs to reduce its weight in order to increase its range, but the material has to balance the strength, durability, and assembly accuracy.

CNC Carbon Fiber is able to achieve a tolerance of ± 0.05 mm, ensuring leak-proof battery housing (crucial for heat management) and seamless integration with metallic parts (for example, chassis mounts).

EV Battery Enclosures: 50% lighter than aluminium, tested on an EV with a 15 per cent increase in range over 300 miles is an impressive breakthrough. What's more, a powerful chassis can reduce the weight of the car by 30% and reduce the lap time by 0.8 seconds.

2. Aerospace:

Machined carbon fiber plate can maintains strength in cryogenic (space) or high-heat (engine) environments which is really important to keep its function.

CNC mills lightweight internal lattice structures, high-stiffness cores for satellite panels (40% lighter than aluminum honeycomb).

Fiber satellite panels can have 15+ year lifespan (vs. 8 years for aluminum), with integrated wiring channels machined directly into the plate which is largely enhance it's life time.

Our CNC process uses diamond-coated tools and low-vibration paths to avoid fiber fraying, ensuring consistent performance in extreme conditions.

3. Sports Equipment: Athletes' Custom Performance

(for example, bicycle frames); two-way shock resistant layers (for example, hockey sticks).

Intricate Shapes: Tapered Ski Edges, Golf Club Heads, and Bicycle Frames Machined to ± 0.1 mm accuracy.

Bicycle Frames are able to achieve a maximum strength of 30% of the weight of the alloy, with 2 times greater vertical compliance (tested on a mountain bike), and a 35 per cent increase in sales following the introduction of CNC-machined carbon fibre frames, which are praised for their "tailor-made feel" and precision.

Ski/Snowboard Cores: Custom flex profiles for beginners (soft) versus pros (hard).

Golf Club Heads: The optimal weight distribution increases the driving distance by 10% (PGA Pro Validation).

Q1. Will we supply a sample?
A1: Yes, both of us hope to confirm the quality first before we start the bigger order,we will charge some cost and it will full refund when you place formal volume orders.

Q2. Can I visit the factory?

A2: Very welcome! Our factory is located in Guangdong Province, and we will show you around our factory.

Q3. What's your company payment term?

A3:In order to start the project in time, you are required to pay the 50% deposit before we start. Then, pay the balance payment before shipment.

Q4. How is your after-sale service ?
A4: We provide excellent after-sale service such as shipment logistics tracking, application guide, problem solution,etc.

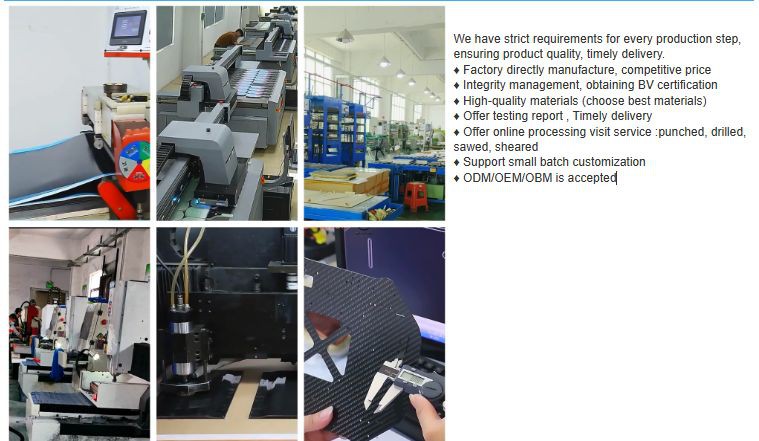

Founded in 2015, Alec Model is located in Shenzhen, Baoan District, and operates from 2,600 square meters of advanced manufacturing facilities (as shown in the image of our factory). As an expert in Precision Prototyping and Mould Manufacturing, we support cross-industry innovation with cutting-edge technology and end-to-end engineering support.

Our Core Strengths:

Development of Advanced Manufacturing Technologies

CNC Machining: Equipped with a 5-axis CNC center and an automatic tool path, we are able to achieve a tolerance of ± 0.01 mm for complicated parts (for example, carbon fibre panels, aerospace support, medical equipment casing).

Rapid Prototyping: We deliver 3-7-day turnarounds to speed up your design validation, from 3D printed concepts to CNC-machined functional prototypes.

Injection Molding: Scalable production tooling for low and high volume operations, with a strong selection of materials (engineering plastics, composites, metals).

Materials and Industry Expertise

Our services are diverse - each with its own unique solutions:

Electronics & IT: Light housing for appliances, communications equipment, and office equipment.

Medical: Biocompatible, high precision parts for diagnosis and surgery.

Automotive & Aerospace: Structural components, light panels, and prototype components.

Consumer Goods: Custom moulds for toys, presents, and simulated models.

What Sets Us Apart?

Accuracy & Consistency: ISO-compliant procedures, optical inspection systems, and stringent quality control ensure a rate of 99.5% + first pass - critical for safety critical industries (medical, aerospace).

Customization: We deal with complex geometry (for example, molded carbon fibre panels) and unique material challenges (for example, high temperature alloys, flexible polymers).

End-to-End Support: Our team provides advice on manufacturability, cost optimization, and delivery times from initial design feedback to mass production.

For more information, visit www.alecmfg.com. Or get in touch with us to turn your idea into a more sophisticated solution. At Alec Model, we have combined our decades of experience in machining with innovation to help you succeed.
